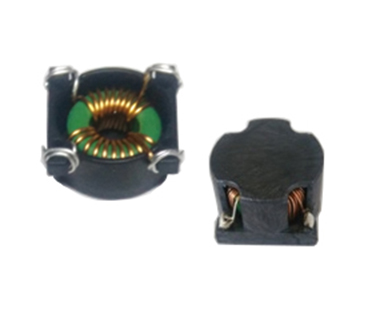

贴片共模电感
产品规格
| 贴片共模电感 | ||||||
| 产品照片 | 规格型号 | 产品尺寸（mm) | 电感量（H) | 阻抗值(Ω) min | 额定电流 （A）max | 备注 |
 |
TLCM116-2-680T | 11.7*11.7*6.5 | 68u | 1500 (at 10MHz) | 1.5 | |
| TLCM116-2-181T | 11.7*11.7*6.5 | 180u | 3000 (at 10MHz) | 1 | ||
| TLCM116-2-681T | 11.7*11.7*6.5 | 680u | 5000 (at 10MHz) | 0.8 | ||
 |
TLCM126-2-181T | 13*10.5*6.5 | 180u | 1500 (at 10MHz) | 2.4 | |
| TLCM126-2-501T | 13*10.5*6.5 | 500u | 4200 (at 10MHz) | 1.5 | ||
| TLCM126-2-152T | 13*10.5*6.5 | 1.5m | 3300 (at 10MHz) | 0.8 | ||
 |
TLCM1711-2-241T | 17.5*15.8*11.5 | 240u | 1800 (at 10MHz) | 6.5 | |
| TLCM1711-2-471T | 17.5*15.8*11.5 | 470u | 3200 (at 10MHz) | 4.5 | ||
| TLCM1711-2-112T | 17.5*15.8*11.5 | 1.1m | 4600 (at 10MHz) | 2.7 | ||
| TLCM1711-2-302T | 17.5*15.8*11.5 | 3.0m | 7000 (at 1MHz) | 2 | ||
 |
TLCM2311-2-471T | 23*22*11.5 | 470u | 1000 (at 3MHz) | 8 | |
| TLCM2311-2-821T | 23*22*11.5 | 820u | 1800 (at 3MHz) | 6.5 | ||
| TLCM2311-2-152T | 23*22*11.5 | 1.5m | 3300 (at 3MHz) | 4.5 | ||
| TLCM2311-2-332T | 23*22*11.5 | 3.3m | 6500 (at 1MHz) | 2.7 | ||
