贴片共模滤波器
产品规格
|
贴片共模滤波器
|
||||||
|

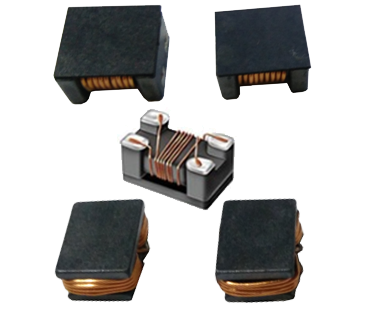

产品照片
|
规格型号
|
产品尺寸（mm)
|
阻抗值(Ω) at 100MHz
|
直流电阻（mΩ)max
|
额定电流（A）max
|
备注
|
 |
TLCF1210 TYPE
|
1.2*1.0*0.8
|
35-160
|
180-600
|
0.26-0.43
|
 |
|
TLCF1608 TYPE
|
1.6*0.8*1.1
|
25-220
|
100-250
|
0.3-0.5
|
||
|
TLCF2012 TYPE
|
2.0*1.2*1.2
|
300-2200
|
200-1400
|
0.1-0.45
|
||
|
TLCF3216 TYPE
|
3.2*1.6*1.8
|
67-2200
|
300-1200
|
0.2-0.5
|
||
|
TLCF3225 TYPE
|
3.2*2.5*2.2
|
600-1000
|
250-350
|
1-1.2
|
||
|
TLCF4532 TYPE
|
4.5*3.2*2.8
|
80-1400
|
70-500
|
0.7-3
|
||
 |
TLCM7660-2-301T01
|
7.6*6.0*4.3
|
300
|
28
|
3.5
|
|
|
TLCM7660-2-451T01
|
7.6*6.0*4.3
|
450
|
30
|
3
|
||
 |
TLCM7060-2-351T01
|
7*6*3.6
|
350
|
20
|
3.5
|
|
|
TLCM7060-2-601T01
|
7*6*3.6
|
600
|
30
|
2.5
|
||
|
TLCM7060-2-901T01
|
7*6*3.6
|
900
|
52
|
1.3
|
||
|
TLCM7060-2-351T02
|
7*6*4.3
|
350
|
12
|
5
|
||
|
TLCM7060-2-501T02
|
7*6*4.3
|
500
|
14
|
4.2
|
||
|
TLCM7060-2-701T02
|
7*6*4.3
|
700
|
19
|
3
|
||
|
TLCM7060-2-901T02
|
7*6*4.3
|
900
|
27
|
1.6
|
||
|
TLCM9070-2-601T02
|
9*7*5.3
|
600
|
10
|
5
|
||
|
TLCM9070-2-701T02
|
9*7*5.3
|
700
|
12
|
4.8
|
||
|
TLCM9070-2-901T02
|
9*7*5.3
|
900
|
13
|
4.5
|
||
|
TLCM9070-2-102T02
|
9*7*5.3
|
1000
|
15
|
3.8
|
||
|
TLCM1211-2-501T01
|
12*11*7.1
|
500
|
5.5
|
8
|
||
|
TLCM1211-2-701T01
|
12*11*7.1
|
700
|
7
|
7.2
|
||
|
TLCM1211-2-801T01
|
12*11*7.1
|
800
|
9
|
7.1
|
||
|
TLCM1211-2-102T01
|
12*11*7.1
|
1000
|
13
|
6
|
||
|
TLCM1513-2-601T01
|
15*13*7.5
|
600
|
6
|
9.5
|
||
|
TLCM1513-2-102T01
|
15*13*7.5
|
1000
|
12
|
7
|
||
|
TLCM1513-2-122T01
|
15*13*7.5
|
1200
|
15
|
5.8
|
||
|
TLCM1513-2-152T01
|
15*13*7.5
|
1500
|
27
|
4.5
|
||
